16' Roll-In-Dock Straight Aluminum Frame With Removable Cedar Decking Complete Dock Package

Regular price $2,499.95

Tommy Docks has great do-it-yourself durable modular designs with the flexibility to expand on in the future. Tommy Docks 4 ft. x 16 ft. Straight Aluminum Frame Roll-In-Dock with Removable Cedar Decking is a complete dock package that was designed with our customers in mind. This great all-in-one kit is constructed from high-quality cedar and corrosion-resistant hardware.  No cutting is required for assembling. The package includes the following components.

  • Two 4 ft. x 8 ft. aluminum frame kits # TD-40008 - Aluminum Frame Instruction PDF Click Here

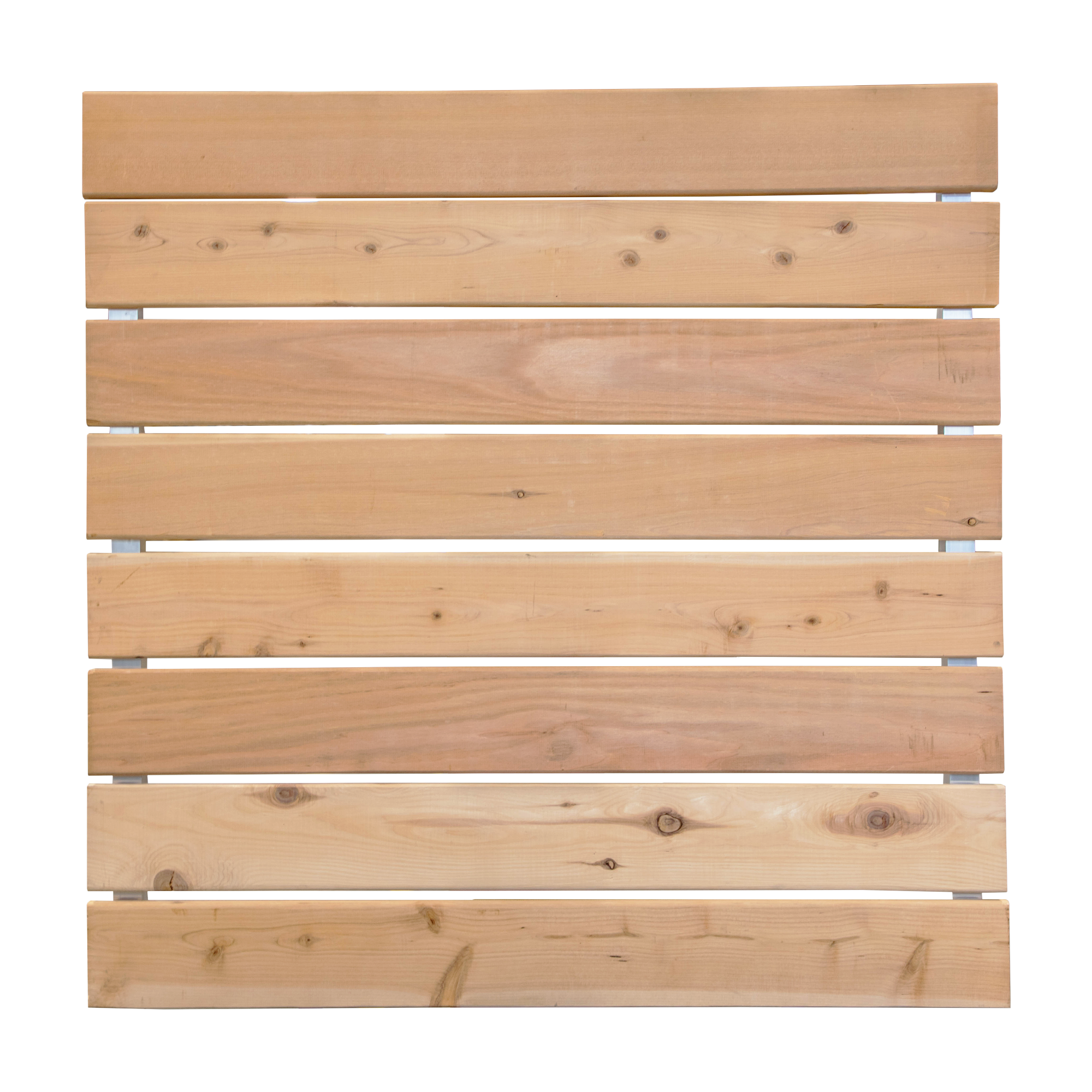

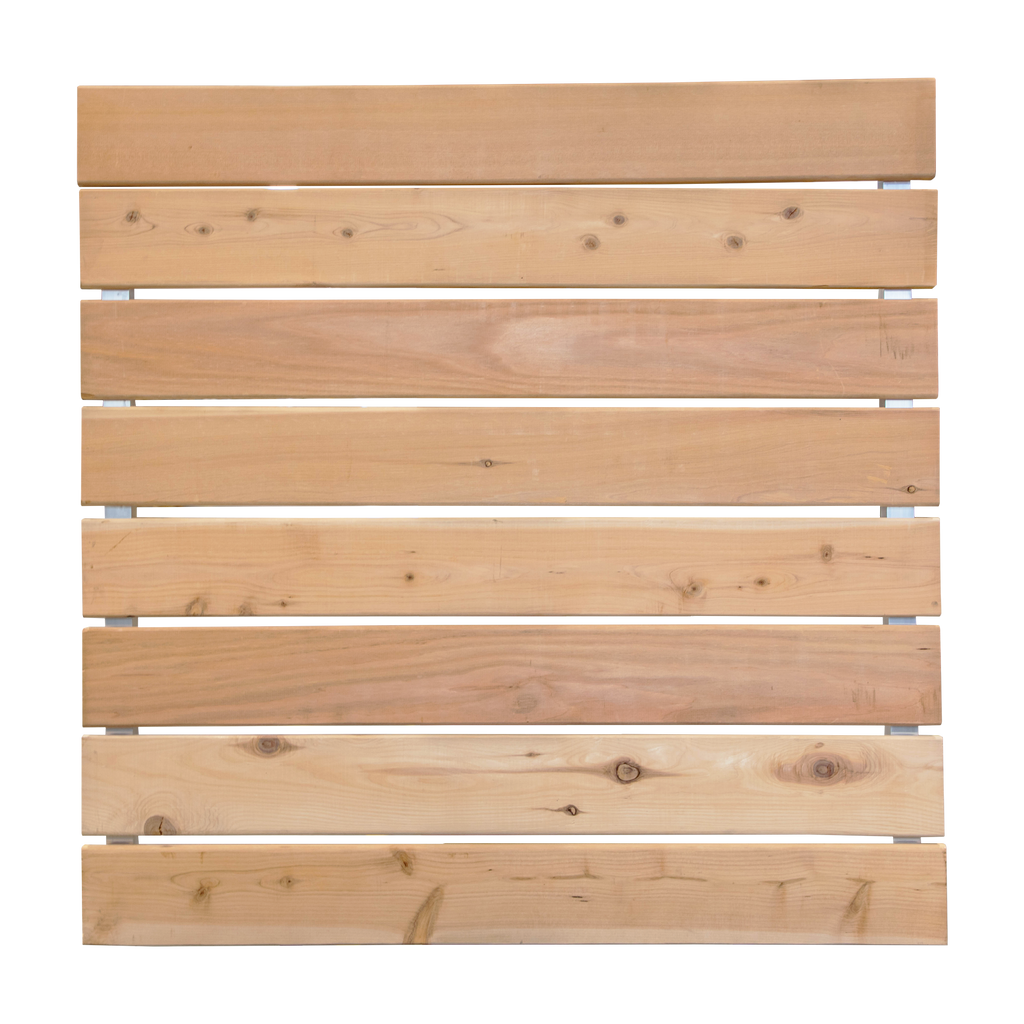

  • Four 4 ft. x 4 ft. drop-in cedar decking panel kits # TDD-308CED - Click for Drop-In Assembly Instructions
  • 2-Gray polyester powder coat paint "A" outside corner bracket heavy-duty # TD-10001
  • 2-Gray polyester powder coat paint "B" straight bracket heavy-duty # TD-10003
  • Two 8 in. Gray powder coat paint heavy duty footpads # TD-10012
  • Two 4 ft. heavy-duty corrosion resistant superior dock pipes # TD-20039
  • Two 6 ft. heavy-duty corrosion resistant superior dock pipes # TD-20041
  • 4- Heavy-duty rubber safety caps # TD-30063
  • 1-Roll-in-dock kit # TD-30145 - For instructions click here
  • The width of the Drop-in Panel is 46 5/8"
  • Each cedar board is 1“ thick by 46-5/8" long by 5-1/2" wide
  • 8 - cedar boards per 4' x 4' drop-in
  • Sturdy aluminum alloy frame with (3) 3” wide I (eye) beam center supports
  • Water and Ground Contact Decking
  • Delivers the industry's best strength-to-weight ratio
  • Can be installed in or in contact with the ground or water
  • Easy-rolling wheels with weep holes to fill with water to help anchor the dock in place
  • Suggested for use in a hard bottom lake/river environment
  • Not suggested for use in a mucky bottom environment, it could get weighted down and get stuck
  • Designed to accommodate water depth of 5 ft. or less
  • Tommy Docks hardware isn't meant to be used in brackish or salt waters
  • Our fixed dock systems are "non-floating" and not recommended to attach a floating dock section
  • Hardware Instructions Click Here

All dock packages are delivered via LTL. Customers do not have to be present for delivery and may or may not be contacted prior to delivery. The pallet with all the items will be dropped in the first available open spot determined by carrier.

Product Number: TD-50600

UPC: 724785506013
